As a martensitic stainless steel specifically designed for high-strength fasteners, ASTM A193 Grade B6 is widely used in heavy industry due to its excellent resistance to high temperature and pressure, strong mechanical properties, and moderate corrosion resistance. As a major industrial hub, international shipping center, and energy and chemical base in Southeast Asia, Singapore imposes extremely high standards on industrial materials for its key sectors. Thanks to its superior performance and compliance with international standards, ASTM A193 Grade B6 has become the material of choice for high-demand industrial applications in the country.
Singapore’s industrial environment is characterized by high temperature, high humidity, and a marine climate, combined with high-pressure and heavy-duty operating conditions. Ordinary steel fasteners often suffer from corrosion, strength degradation, and premature failure. According to local industrial inspection data in Singapore, nearly 40% of fastener failures in industrial equipment are caused by insufficient weather resistance and mechanical performance. The use of ASTM A193 Grade B6 can reduce such failure rates by more than 70%. In addition, Singapore strictly enforces international industrial standards, especially for critical equipment and facilities, where ASTM A193 Grade B6 is widely specified for its full compliance with ASTM/ASME requirements and excellent adaptability to local working conditions.
Core Properties of ASTM A193 Grade B6
ASTM A193 Grade B6 is based on Type 410 stainless steel bar, manufactured by machining or cold working, and further strengthened by quenching and tempering at a minimum temperature of 593°C to improve strength and toughness. Its precise chemical composition and excellent mechanical properties form the foundation for its suitability in Singapore’s industrial and natural environment, making it a preferred material for high-end fasteners locally.
1. Chemical Composition (Weight, %)
The chemical composition of ASTM A193 Grade B6 strictly complies with ASTM A193/A193M. The controlled chromium content is critical to balancing corrosion resistance and mechanical performance, especially in Singapore’s salt-laden, high-humidity marine atmosphere.
| Element | Content Range | Key Function |
|---|---|---|
| C (Carbon) | 0.08 – 0.15 | Increases strength and hardness; ensures structural stability at high temperatures |
| Mn (Manganese) | ≤ 1.00 | Improves machinability and impact resistance |
| P (Phosphorus) | ≤ 0.040 | Restricted impurity to prevent embrittlement |
| S (Sulfur) | ≤ 0.030 | Restricted impurity to improve machining and welding behavior |
| Si (Silicon) | 0.15 – 0.75 | Enhances oxidation resistance and high-temperature corrosion resistance |
| Cr (Chromium) | 11.50 – 13.50 | Forms a protective passive oxide film; provides resistance to marine atmosphere and mild chemical corrosion |
| Ni (Nickel) | ≤ 0.75 | Improves toughness and low-temperature mechanical properties |
| Fe (Iron) | Balance | Base matrix ensuring structural integrity |
2. Mechanical Properties (After Quenching & Tempering)
For nominal diameters ≤ 50 mm, ASTM A193 Grade B6 delivers consistent high performance ideal for high-temperature and high-pressure equipment in Singapore’s petrochemical, power, and marine industries.
| Property | Minimum Value | Test Condition / Description |
|---|---|---|
| Tensile Strength (UTS) | 758.4 MPa (110 ksi) | Tested at room temperature |
| Yield Strength (0.2% Offset) | 586.1 MPa (85 ksi) | Prevents plastic deformation under working load |
| Elongation (Gauge Length 4D) | 15% | Ensures toughness and resistance to brittle fracture |
| Reduction of Area | 40% | Improves impact and fatigue resistance |
| Shear Strength | Approx. 80,000 psi | Suitable for shear-loaded fastener applications |
| Hardness (Brinell HB) | 223 – 269 HB | Balances strength and machinability; avoids excessive hardness that damages threads |
3. Other Key Characteristics
- High-Temperature & High-Pressure Resistance: Maintains stable mechanical properties at 500°C to 650°C with less than 10% strength loss, ideal for pressure vessels, steam pipelines, boilers, and turbines.

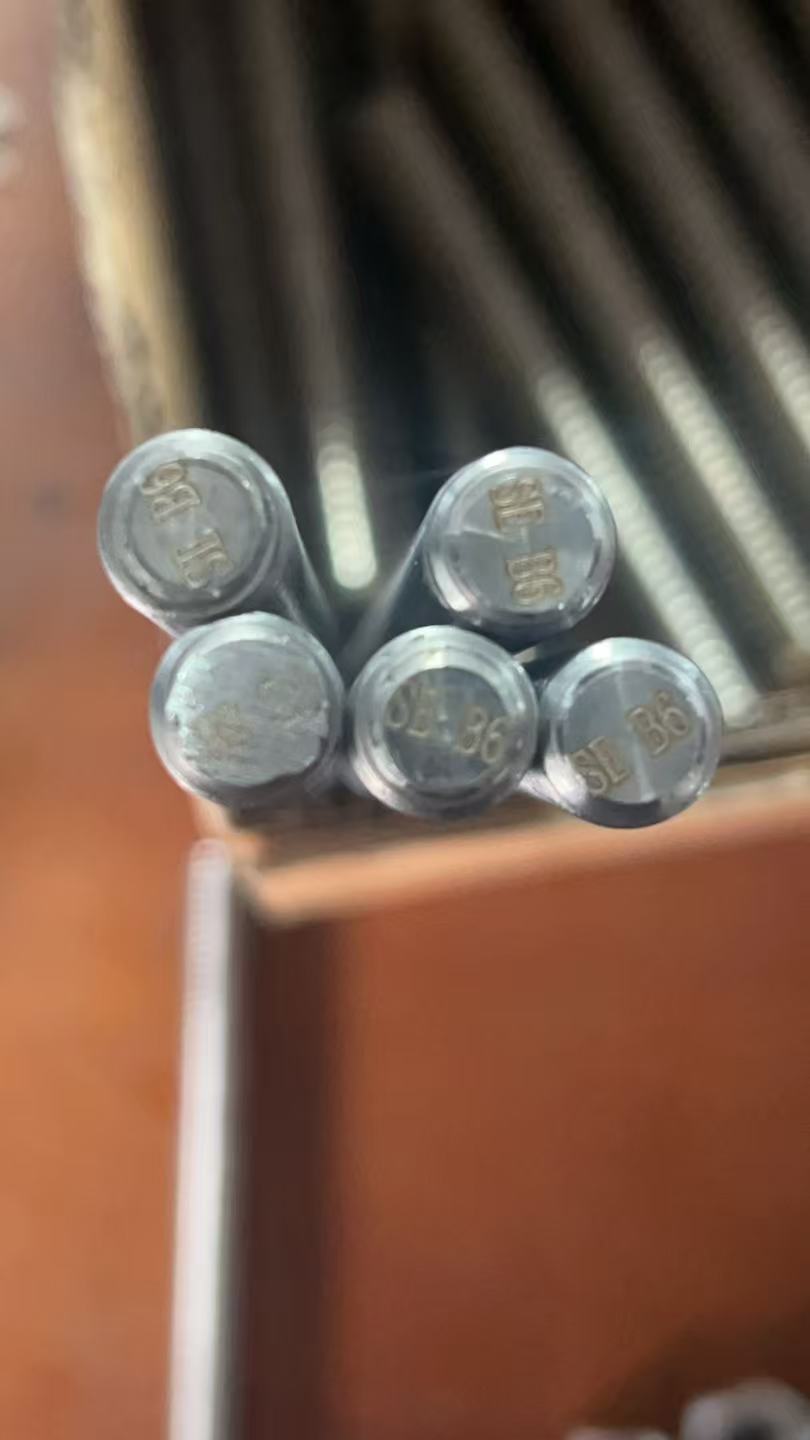

- Good Machinability & Compatibility: Can be fabricated into studs, hex bolts, threaded rods, anchor bolts, and other fasteners in sizes ranging from 1/4”–4” UNC/UNF and metric M4–M64. It is typically used with ASTM A194 Grade 6 nuts and Type 410 stainless steel washers.
- Cost-Effectiveness: Offers a more economical solution compared to austenitic stainless steels such as 316L, while retaining sufficient high-temperature performance and corrosion resistance for most industrial applications in Singapore.
- Weather Adaptability: The chromium-based passive film effectively resists atmospheric corrosion in Singapore’s hot, humid, and salty marine environment, as well as mild attack from media such as hydrogen sulfide in petrochemical processes.
Application of ASTM A193 Grade B6 in Singapore’s Petrochemical Industry
Jurong Island in Singapore is one of Asia’s leading petrochemical hubs, hosting integrated refining, chemical synthesis, storage, and logistics facilities. In this sector, pipelines and equipment operate under high temperature, high pressure, and corrosive conditions, demanding highly reliable fasteners. ASTM A193 Grade B6 is widely specified due to its stable chemistry and high mechanical strength.
- Pressure Piping & Flange Connections: Used in high-temperature steam lines, crude oil pipelines, and chemical transfer lines for flanged joints. It withstands high internal pressures and temperatures above 500°C, preventing leakage and loosening. The chromium content provides resistance to hydrogen sulfide and similar process media.
- Pressure Vessels & Heat Exchangers: Applied to vessel heads, nozzles, and shell connections in reactors, storage tanks, heat exchangers, and condensers. High tensile and yield strengths ensure structural integrity under pressure, while elongation and reduction of area prevent brittle failure during thermal cycling.
- Refining & Processing Units: Used in distillation columns, cracking units, and polymerization reactors. Its stable high-temperature performance supports 24/7 continuous operation without significant strength loss.
Major petrochemical operators on Jurong Island, including ExxonMobil and Shell, specify ASTM A193 Grade B6 fasteners in full compliance with ASTM A193/A193M and ASME B18.21 standards.
Application of ASTM A193 Grade B6 in Singapore’s Power & Energy Industry
Power generation is a critical infrastructure sector in Singapore, with gas-fired, co-generation, and renewable-supporting plants operating under sustained high-temperature and high-pressure conditions. ASTM A193 Grade B6 is preferred for its excellent high-temperature mechanical properties and dimensional stability.
- Boilers & Turbine Assemblies: Used in boiler drums, superheaters, gas turbines, and steam turbine casings. It maintains yield strength above 500 MPa at temperatures exceeding 600°C, preventing loosening or fracture caused by thermal expansion and contraction.
- High-Temperature Pipeline Systems: Specified for main steam pipes, reheat steam lines, and high-pressure valve connections. Its high tensile strength ensures tight sealing and safe operation under high-pressure steam conditions.
- Renewable Energy Support Facilities: Used in high-voltage switchgear, energy storage tanks, and substation equipment in solar and wind support systems. It combines high-pressure resistance with good corrosion resistance in the coastal environment, while low phosphorus and sulfur reduce the risk of electrochemical corrosion.
Application of ASTM A193 Grade B6 in Singapore’s Marine Engineering & Offshore Facilities
As a global maritime center, Singapore operates one of the world’s largest ports and is a key player in offshore engineering, shipbuilding, and offshore platform construction. The harsh marine environment demands materials with both high corrosion resistance and structural strength.
- Port & Terminal Equipment: Used in container cranes, loading machinery, and wharf structural connections. The 11.50–13.50% chromium content forms a protective oxide layer against salt spray and high humidity, extending service life. High shear strength supports heavy lifting loads.
- Offshore Platforms & Wind Facilities: Applied in steel structures and equipment fasteners for oil drilling platforms and offshore wind turbines. It withstands dynamic wind and wave loads while resisting seawater and marine atmospheric corrosion. Low impurity levels (P ≤ 0.040%, S ≤ 0.030%) reduce the risk of stress corrosion cracking.
- Shipbuilding & Repair: Used in engine systems, tank connections, and high-temperature components of ocean-going vessels and chemical tankers. Tempered toughness resists vibration and shock during navigation, maintaining tightness and structural safety.
Application of ASTM A193 Grade B6 in Singapore’s Infrastructure Construction
ASTM A193 Grade B6 is also specified in Singapore’s heavy infrastructure projects where high strength and weather resistance are required simultaneously.
- Bridges & Transport Hubs: Used in structural connections of inter-island bridges, coastal crossings, and heavy-duty fixed equipment in MRT and LRT systems. High yield strength supports long-term heavy loads, while corrosion resistance protects against coastal degradation.
- Industrial Buildings & Factories: In Jurong Industrial Estate, Tuas Industrial Zone, and other heavy-industry areas, Grade B6 threaded rods and anchor bolts secure steel columns, beams, and large machinery foundations. Its tensile strength and hardness ensure stable performance under operational vibration.
Selection & Construction Specifications for ASTM A193 Grade B6 in Singapore
Singapore enforces strict industrial material standards. ASTM A193 Grade B6 fasteners must meet both international specifications and local regulatory requirements, with special attention to chemical composition and mechanical performance.
- Material Standard Compliance: All products must conform to ASTM A193/A193M. Suppliers shall provide certified mill test reports (MTC) covering chemical composition, mechanical properties, and heat treatment records. Chromium content must be within 11.50–13.50%, tensile strength ≥ 758.4 MPa, yield strength ≥ 586.1 MPa.
- Matching Components: Use with ASTM A194 Grade 6 nuts and AISI 410 washers to ensure galvanic compatibility, prevent corrosion, and maintain clamping force. Mixed-material assemblies are not recommended.
- Sizes & Threads: Standard metric M4–M64 and imperial 1/4”–4” UNC/UNF threads are commonly used. Custom lengths are available for special equipment. Finished fasteners must have undamaged threads and hardness within 223–269 HB.
- Installation Practices: Surfaces must be cleaned of oil, rust, and contaminants to preserve the passive film. Torque-controlled tightening is mandatory using calibrated wrenches to avoid over-tightening (fracture) or under-tightening (leakage). Lock washers or locking devices are recommended in marine and high-vibration environments.
- Import & Certification: Imported fasteners must comply with Singapore industrial product regulations administered by Enterprise Singapore. Certificates of origin, test reports, and heat treatment documentation are required for customs and project inspection.
Maintenance & Inspection Requirements for ASTM A193 Grade B6 in Singapore
Due to Singapore’s hot, humid, high-salt environment and heavy industrial operating conditions, regular maintenance and inspection are essential to ensure long-term performance and safety.
- Visual Inspection
- Petrochemical & power equipment: Monthly inspection for rust, deformation, thread damage, and flange leakage. Verify integrity of the chromium passive film.
- Marine & port equipment: Bi-weekly inspection for pitting, crevice corrosion, and salt deposits. Remove marine deposits and surface rust promptly.
- Mechanical & Torque Inspection
- Critical equipment: Torque verification every 6 months. Re-torque loose fasteners; replace deformed, cracked, or galled bolts.
- Offshore platforms: Torque and magnetic particle inspection every 3 months to detect fatigue cracking from dynamic loads.
- Corrosion Protection & Lubrication
- Marine environment: Apply marine-grade anti-corrosion coatings quarterly to maintain the passive film and resist saltwater attack.
- High-temperature equipment: Use high-temperature lithium-based grease monthly to prevent thread galling and carbonization at temperatures up to 650°C.
- In-Depth Testing & Replacement
- After 5,000 operating hours: Perform ultrasonic or magnetic particle testing to detect internal cracks. Defective fasteners must be replaced immediately.
- Petrochemical service: Recommended replacement every 3–5 years even if visually acceptable, due to gradual degradation of the passive layer.
- Mandatory replacement if: cross-sectional loss > 10%, severe thread damage, deep corrosion pitting, or hardness outside 223–269 HB.
- Testing Standards: All inspections shall be performed by SAC-SINGLAS accredited laboratories in accordance with Singapore SS 500 and relevant ASTM standards. Reports must be archived for asset integrity management.
For any A193 B6 material inquiries, material selection, customization, or procurement needs, contact us for one-stop professional solutions.
Contact Us
📧 Email: info@shpipeindustry.com
📞 Phone: 0086-18837185745
🌐 Website: www.shpipeindustry.com
