Threaded Pipe Fittings
Threaded pipe fittings are designed with threaded ends, allowing them to be easily screwed together, resulting in a tight and reliable seal. These fittings are versatility, convenience, and ease of installation, making them a preferred choice for plumbing systems, gas pipelines, industrial processes, and more.
Whether it’s joining pipes of the same size or connecting different materials, our threaded pipe fittings provide a cost-effective and flexible solution for ensuring efficient fluid flow. Customize for your business now.
Get A Free Quote Now

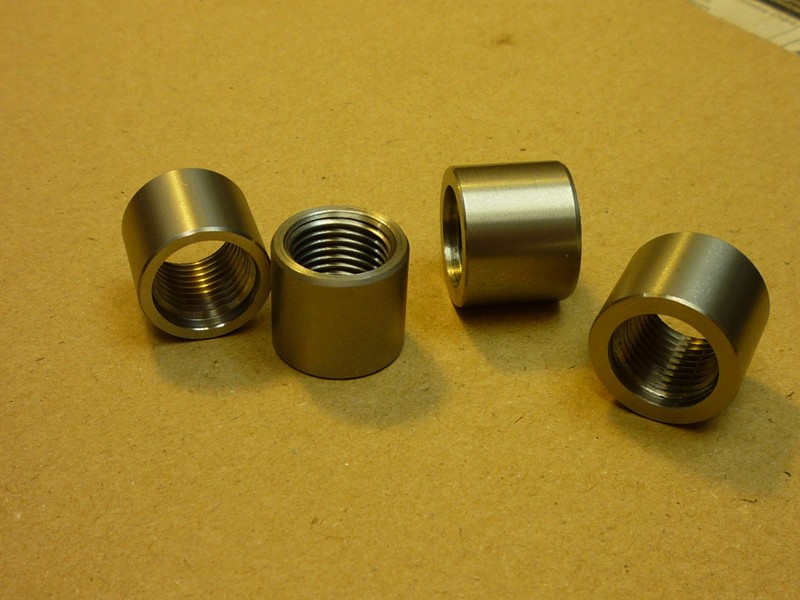

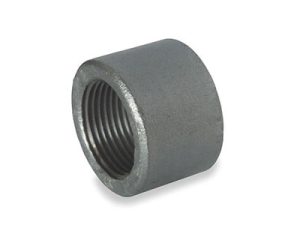

Threaded Caps For Sale
These caps are designed with threaded ends, allowing them to securely fasten onto the corresponding threaded opening. Threaded caps provide a reliable solution for closing off pipes, preventing the leakage of fluids, dust, and contaminants. These cap fittings come in a variety of materials, allowing them to withstand different operating conditions and environments. Common materials include metal alloys such as stainless steel, brass, and carbon steel.
And Shenghe threaded caps are available in different sizes and configurations to suit specific pipe and fitting requirements. They can be found in various thread standards, including NPT (National Pipe Thread), BSP (British Standard Pipe), and metric threads. This ensures compatibility with a wide range of pipe systems and fittings, providing a versatile solution for various applications.

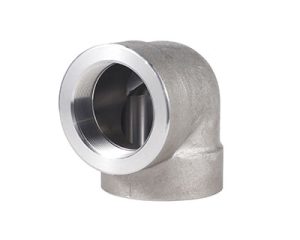

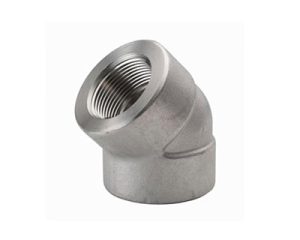

Threaded Elbows For Sale
Threaded elbows are designed with threaded ends, making them suitable for connecting threaded pipes securely and efficiently. Our threaded elbows are meticulously engineered for seamless installation and a leak-free connection. The threaded ends are designed to provide a secure fit, ensuring a tight and reliable seal. This feature allows for easy assembly and disassembly, making maintenance and repairs hassle-free.
With durable construction, reliable threaded connections, and precise engineering, Shenghe threaded elbows have become a go-to choice for various industries. When you choose Shenghe, you can expect top-quality threaded elbows and exceptional customer service that exceeds your expectations.

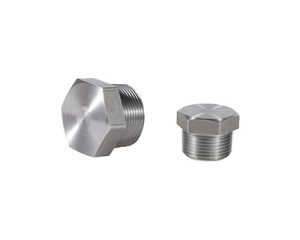

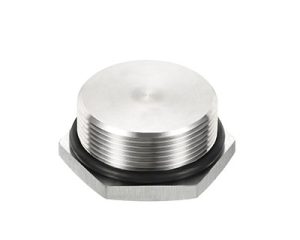

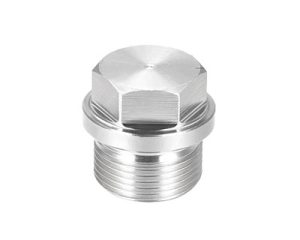

Threaded Plug For Sale
A threaded plug is a type of pipe fitting commonly used to seal the end of a threaded pipe or fitting. It consists of a cylindrical piece with external threads that screw into the internal threads of the pipe or fitting, providing a secure and leak-proof seal.
With matching internal and external threads, they can be quickly and easily threaded into the pipe or fitting, requiring no special tools or equipment. In some applications, threaded plugs may also have features such as a square head or a hexagonal shape that allows for easy tightening with a wrench or other tools. This provides additional convenience and ensures a tight fit.

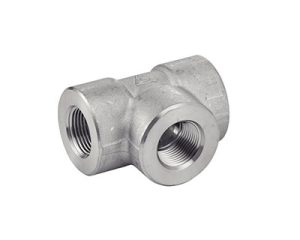

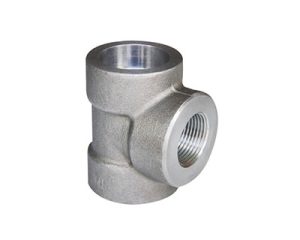

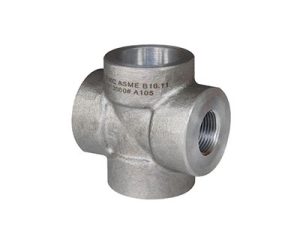

Threaded Pipe Tee & Cross For Sale
The Tee fitting, resembling the letter “T” in shape, provides a simple and effective way to divert the flow of fluid or gas in three directions. This makes it ideal for applications where the distribution or combination of fluids is required, such as in plumbing systems or hydraulic circuits. On the other hand, Cross fittings, resembling the letter “X” in shape, allow for the creation of four-way connections. This enables the control and diversion of flow in multiple directions simultaneously, making them suitable for more complex pipe layouts or systems.
With their excellent functionality, durability, and ease of installation, Shenghe pipe tee and cross are guaranteed to meet your requirements. Contact our team today to discuss your specific needs and let us help you find the perfect solution for your piping system.

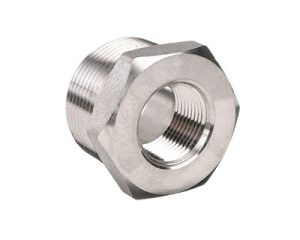

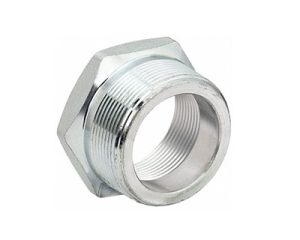

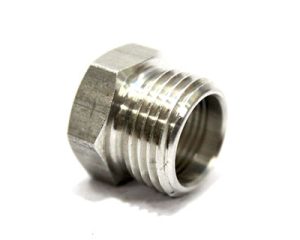

Threaded Hex Head Bushing For Sale
A threaded hex head bushing, also known as a hex head reducer, is a type of pipe fitting that is used to connect pipes or fittings of different sizes.
Shenghe threaded hex bushing provides a secure and reliable connection, making it a popular choice in plumbing and piping systems across various industries. Its easy installation and adjustable hex head design add to its convenience and functionality.

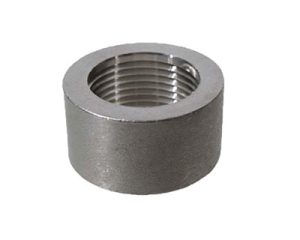

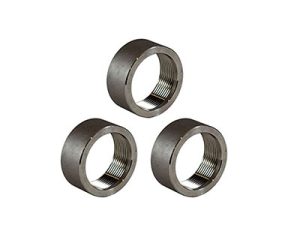

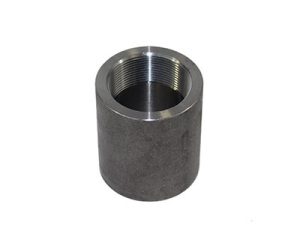

Threaded Full & Half Coupling For Sale
A threaded half/full coupling is a fitting that has threads on both ends, allowing it to join two pipes directly by screwing them together. It is typically used when there is a need for a complete and uninterrupted connection between two pipes. The threads on both ends of the coupling ensure a tight and secure fit, preventing any leaks or disconnections.
Our threaded couplings are meticulously crafted using premium materials, ensuring excellent strength, corrosion resistance, and longevity. Each coupling undergoes rigorous quality control inspections throughout the manufacturing process to ensure that it meets our stringent standards.
Shenghe threaded couplings Contact us now to discuss your specific requirements and get a quote for our top-quality Shenghe full & half couplings. Experience the exceptional performance and reliability that these fittings offer in your piping systems.
Threaded Pipe Fittings Standards
| Standard | Types | Class Rating/Schedule | Ends | Size |
| ASME B16.11 | 90°Elbow/ 45°Elbow/ Tee/ Cross | 2000LB | Threaded | 1/4”~4” |
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coulping | 3000LB/6000LB | Threaded | 1/4”~4” | |
| Socket-welding | 1/8”~4” | |||
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coulping | 9000LB | Socket-welding | 1/2”~2” |
Threaded Pipe Fittings Material Grades
| Nickel Alloy | ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3) |
| Stainless Steel | ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. |
| Duplex and Super Duplex | ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61. |
Threaded Pipe Fittings Advantages
Strong Connection
The threads on the fittings mesh tightly with the corresponding threads on the pipes, forming a tight seal and preventing leaks.
Ease of Installation
With threads on both the pipe and the fitting, they can be easily screwed together without requiring any special tools or welding.
High Strength
Shenghe threaded fittings are typically made from durable materials such as stainless steel, carbon steel, or brass, contributing to high durability.
Threaded Pipe Fittings Price
Customer Testimonials
“We installed Shenghe threaded pipe fittings for our oil and gas piping maintenance, and the fittings were precisely engineered and manufactured to ensure a perfect fit, eliminating any leaks or potential points of failure. This has resulted in improved safety and reduced maintenance requirements for our oil and gas pipelines.”
Mike Owen
france
“Our partnership with Shenghe has been exceptional. The outstanding quality of their threaded pipe fittings, considerate service, customized business plan, low price coupled with their commitment to customer trustworthiness, makes them a preferred choice for our piping needs.”
Jagdishkumar
Australia
Threaded Pipe Fittings Dimensions
Threaded End Caps ASME B16.11:
| Class 3000 | |||||
| NPS | Length | Outside Dia | Min WT | Min Thread Length | |
| A | D | G | B | J | |
| 1/2 | 32 | 28 | 6.4 | 10.9 | 13.6 |
| 3/4 | 37 | 35. | 6.4 | 12.7 | 13.9 |
| 1 | 41 | 44 | 9.7 | 14.7 | 17.3 |
| 1.1/4 | 44 | 57 | 9.7 | 17 | 18 |
| 1.1/2 | 44 | 64 | 11.2 | 17.8 | 18.4 |
| 2 | 48 | 76 | 12.7 | 19 | 19.2 |
| 2.1/2 | 60 | 92 | 15.7 | 23.6 | 28.9 |
| 3 | 65 | 108 | 19 | 25.9 | 30.5 |
| 4 | 68 | 140 | 22.4 | 27.7 | 33 |
| Class 6000 | |||||
| NPS | Length | Outside Dia | Min WT | Min Thread Length | |
| A | D | G | B | J | |
| 1/2 | 33 | 38 | 7.9 | 10.9 | 13.6 |
| 3/4 | 38 | 44 | 7.9 | 12.7 | 13.9 |
| 1 | 43 | 57 | 11.2 | 14.7 | 17.3 |
| 1.1/4 | 46 | 64 | 11.2 | 17 | 18 |
| 1.1/2 | 48 | 76 | 12.7 | 17.8 | 18.4 |
| 2 | 51 | 92 | 15.7 | 19 | 19.2 |
| 2.1/2 | 64 | 108 | 19 | 23.6 | 28.9 |
| 3 | 68 | 127 | 22.4 | 25.9 | 30.5 |
| 4 | 75 | 159 | 28.4 | 27.7 | 33 |
Notes:
Dimensions are in millimeters unless otherwise indicated.
Dimension (B) is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.
Threaded Elbows 90°/45° ASME B16.11:
| Class 2000 | ||||||
| NPS | Min Thread Length | Outside Dia | Min WT | Center to End | ||
| B | J | D | G | 90°A | 45°C | |
| 1/2 | 10.9 | 13.6 | 33 | 3.18 | 28 | 22 |
| 3/4 | 12.7 | 13.9 | 38 | 3.18 | 33 | 25 |
| 1 | 14.7 | 17.3 | 46 | 3.68 | 38 | 28 |
| 1.1/4 | 17 | 18 | 56 | 3.89 | 44 | 33 |
| 1.1/2 | 17.8 | 18.4 | 62 | 4.01 | 51 | 35 |
| 2 | 19 | 19.2 | 75 | 4.27 | 60 | 43 |
| 2.1/2 | 23.6 | 28.9 | 92 | 5.61 | 76 | 52 |
| 3 | 25.9 | 30.5 | 109 | 5.99 | 86 | 64 |
| 4 | 27.7 | 33 | 146 | 6.55 | 106 | 79 |
| Class 3000 | ||||||
| NPS | Min Thread Length | Outside Dia | Min WT | Center to End | ||
| B | J | D | G | 90°A | 45°C | |
| 1/2 | 10.9 | 13.6 | 38 | 4.09 | 33 | 25 |
| 3/4 | 12.7 | 13.9 | 46 | 4.32 | 38 | 28 |
| 1 | 14.7 | 17.3 | 56 | 4.98 | 44 | 33 |
| 1.1/4 | 17 | 18 | 62 | 5.28 | 51 | 35 |
| 1.1/2 | 17.8 | 18.4 | 75 | 5.56 | 60 | 43 |
| 2 | 19 | 19.2 | 84 | 7.14 | 64 | 44 |
| 2.1/2 | 23.6 | 28.9 | 102 | 7.65 | 83 | 52 |
| 3 | 25.9 | 30.5 | 121 | 8.84 | 95 | 64 |
| 4 | 27.7 | 33 | 152 | 11.18 | 114 | 79 |
| Class 6000 | ||||||
| NPS | Min Thread Length | Outside Dia | Min WT | Center to End | ||
| B | J | D | G | 90°A | 45°C | |
| 1/2 | 10.9 | 13.6 | 46 | 8.15 | 38 | 28 |
| 3/4 | 12.7 | 13.9 | 56 | 8.53 | 44 | 33 |
| 1 | 14.7 | 17.3 | 62 | 9.93 | 51 | 35 |
| 1.1/4 | 17 | 18 | 75 | 10.59 | 60 | 43 |
| 1.1/2 | 17.8 | 18.4 | 84 | 11.07 | 64 | 44 |
| 2 | 19 | 19.2 | 102 | 12.09 | 83 | 52 |
| 2.1/2 | 23.6 | 28.9 | 121 | 15.29 | 95 | 64 |
| 3 | 25.9 | 30.5 | 146 | 16.64 | 106 | 79 |
| 4 | 27.7 | 33 | 152 | 18.67 | 114 | 79 |
Notes:
Dimensions are in millimeters unless otherwise indicated.
Dimension (B) is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

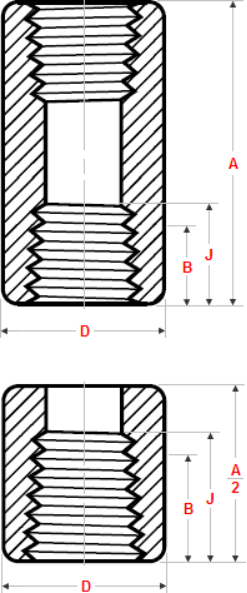

Threaded Full and Half Couplings ASME B16.11:
| Class 3000 | ||||
| NPS | Length | Outside Dia | Min Thread Length | |
| A | D | B | J | |
| 1/2 | 48 | 28 | 10.9 | 13.6 |
| 3/4 | 51 | 35 | 12.7 | 13.9 |
| 1 | 60 | 44 | 14.7 | 17.3 |
| 1.1/4 | 67 | 57 | 17 | 18 |
| 1.1/2 | 79 | 64 | 17.8 | 18.4 |
| 2 | 86 | 76 | 19 | 19.2 |
| 2.1/2 | 92 | 92 | 23.6 | 28.9 |
| 3 | 108 | 108 | 25.9 | 30.5 |
| 4 | 121 | 140 | 27.7 | 33 |
| Class 6000 | ||||
| NPS | Length | Outside Dia | Min Thread Length | |
| A | D | B | J | |
| 1/2 | 48 | 38 | 10.9 | 13.6 |
| 3/4 | 51 | 44 | 12.7 | 13.9 |
| 1 | 60 | 57 | 14.7 | 17.3 |
| 1.1/4 | 67 | 64 | 17 | 18 |
| 1.1/2 | 79 | 76 | 17.8 | 18.4 |
| 2 | 86 | 92 | 19 | 19.2 |
| 2.1/2 | 92 | 108 | 23.6 | 28.9 |
| 3 | 108 | 127 | 25.9 | 30.5 |
| 4 | 121 | 159 | 27.7 | 33 |
Notes:
Dimensions are in millimeters, except for bolts and bolt holes.
Dimension (B) is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

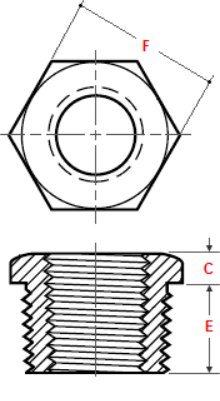

Threaded Hex Head Bushings ASME B16.11:
| NPS | Min LengthE | Min Hex HeightC | NominalF |
| 1/2 | 14 | 5 | 22 |
| 3/4 | 16 | 6 | 27 |
| 1 | 19 | 6 | 35 |
| 1.1/4 | 21 | 7 | 44.5 |
| 1.1/2 | 21 | 8 | 51 |
| 2 | 22 | 9 | 63.5 |
| 2.1/2 | 27 | 10 | 76 |
| 3 | 28 | 10 | 89 |
| 4 | 32 | 13 | 117.5 |
Notes:
Dimensions are in millimeters unless otherwise indicated.
Cautionary Note Regarding Hex Bushings.. Hex head bushings of one-size reduction should not be used in services where they might be subject to harmful loads and forces other than internal pressures.

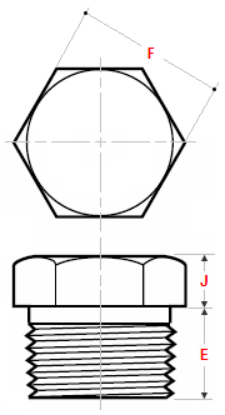

Hex & Square & Round Head Plugs ASME B16.11:
| Hex Plug | |||
| NPS | Min LengthE | Min Hex HeightJ | NominalF |
| 1/2 | 14 | 8 | 22 |
| 3/4 | 16 | 10 | 27 |
| 1 | 19 | 10 | 35 |
| 1.1/4 | 21 | 14 | 44.5 |
| 1.1/2 | 21 | 16 | 51 |
| 2 | 22 | 18 | 63.5 |
| 2.1/2 | 27 | 19 | 76 |
| 3 | 28 | 21 | 89 |
| 4 | 32 | 25 | 117.5 |
| Square Head Plug | |||
| NPS | Min LengthE | Min Square HeightC | Min Width FlatsB |
| 1/2 | 14 | 10 | 14 |
| 3/4 | 16 | 11 | 16 |
| 1 | 19 | 13 | 21 |
| 1.1/4 | 21 | 14 | 24 |
| 1.1/2 | 21 | 16 | 28 |
| 2 | 22 | 18 | 32 |
| 2.1/2 | 27 | 19 | 36 |
| 3 | 28 | 21 | 41 |
| 4 | 32 | 25 | 65 |
| Round Head Plug | |||
| NPS | Min LengthA | Nominal Head DiaD | Min LengthE |
| 1/2 | 44 | 21 | 14 |
| 3/4 | 44 | 27 | 16 |
| 1 | 51 | 33 | 19 |
| 1.1/4 | 51 | 43 | 21 |
| 1.1/2 | 51 | 48 | 21 |
| 2 | 64 | 60 | 22 |
| 2.1/2 | 70 | 73 | 37 |
| 3 | 70 | 89 | 28 |
| 4 | 76 | 114 | 32 |
Notes:
Dimensions are in millimeters unless otherwise indicated.

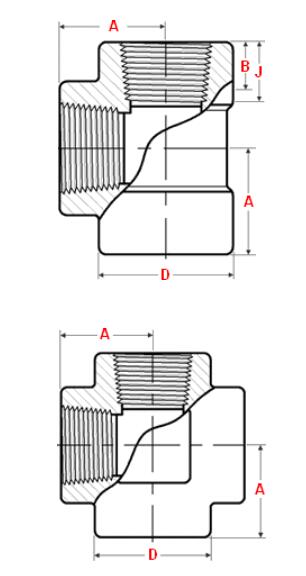

Threaded Tees & Crosses ASME B16.11:
| Class 2000 | |||||
| NPS | Min Length of Thread | Outside Dia of BandD | Center to EndA | MinWT | |
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
| 1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
| Class 3000 | |||||
| NPS | Min Length of Thread | Outside Dia of BandD | Center to EndA | MinWT | |
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1.1/4 | 17 | 18 | 62 | 51 | 5.28 |
| 1.1/2 | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2.1/2 | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
| Class 6000 | |||||
| NPS | Min Length of Thread | Outside Dia of BandD | Center to EndA | MinWT | |
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1.1/4 | 17 | 18 | 75 | 60 | 10.59 |
| 1.1/2 | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2.1/2 | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
Notes:
Dimensions are in millimeters unless otherwise indicated.
Dimension B is minimum length of perfect thread.
The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.
