Henan Sheng He Pipe Industry Co., Ltd., have an experience spanning for over ten years, producing and supplying best-in-class products, minimize cost by getting manufacturing processes under one roof and delivering consignments on a daily basis only because of a diligent and dedicated team. We are manufacturers, suppliers and exporters of Butt Weld End Cap.
Butt Weld pipe fittings production process
Buttweld Fittings manufacturing process includes a series of steps like Annealing, Straightening, Pickling & Passivation and Polishing.

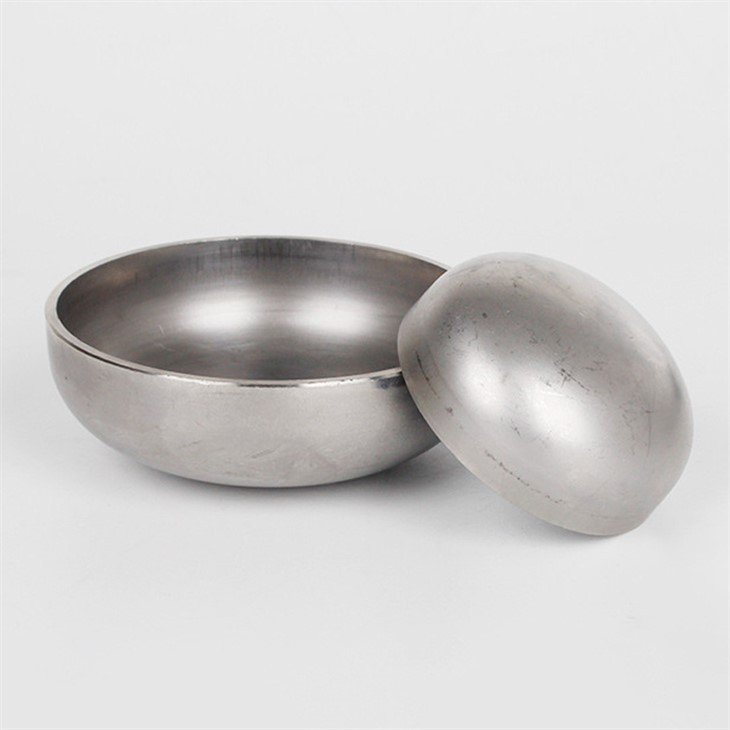

Pipe End Caps, also known as Pipe Caps, suggest their function through stheir name: they act as a seal to the end of a pipe. Their primary function is to waterproof piping networks in addition to resisting chemicals, moisture and weather. Our end caps have pressure releasing abilities and flexible.
Dimensions Butt Weld Caps ASME B16.9
| NPS | O.D. D | Length H | Length H(1) |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 1.1/4 | 42.2 | 38 | 38 |
| 1.1/2 | 48.3 | 38 | 38 |
| 2 | 60.3 | 38 | 44 |
| 2.1/2 | 73 | 38 | 51 |
| 3 | 88.9 | 51 | 64 |
| 3.1/2 | 101.6 | 64 | 76 |
| 4 | 114.3 | 64 | 76 |
| 5 | 141.3 | 76 | 89 |
| 6 | 168.3 | 89 | 102 |
| 8 | 219.1 | 102 | 127 |
| 10 | 273 | 127 | 152 |
| 12 | 323.8 | 152 | 178 |
| 14 | 355.6 | 165 | 191 |
| 16 | 406.4 | 178 | 203 |
| 18 | 457 | 203 | 229 |
| 20 | 508 | 229 | 254 |
| 22 | 559 | 254 | 254 |
| 24 | 610 | 267 | 305 |
| 26 | 660 | 267 | – |
| 28 | 711 | 267 | – |
| 30 | 762 | 267 | – |
| 32 | 813 | 267 | – |
| 34 | 864 | 237 | – |
| 36 | 914 | 267 | – |
| 38 | 965 | 305 | – |
| 40 | 1016 | 305 | – |
| 42 | 1067 | 305 | – |
| 44 | 1118 | 343 | – |
| 46 | 1168 | 343 | – |
| 48 | 1219 | 343 | – |
General notes..
- Dimensions are in millimeters unless otherwise indicated.
- Wall thickness (t) must be specified by customer.
- The shape shall be ellipsoidal and shall conform to the requirements given in the ASME Boiler and Pressure Vessel Code.
- Length (H) applies for thickness not exceeding that given in column “Wall Thickness” for Length, H.
- Length (H1) applies for thickness greater than that given in column “Wall Thickness” for NPS 24 and smaller. For NPS 26 and larger, length H1 shall be by agreement between the manufacturerand purchaser.
Dimensional Tolerances of End Caps ASME B16.9
| Nominal Pipe Size | 1/2 to 2.1/2 | 3 to 3.1/2 | 4 | 5 to 8 | |
| Outside Diameter at Bevel (D) | + 1.6 – 0.8 | 1.6 | 1.6 | + 2.4 – 1.6 | |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 | |
| Overall Length (H) | 3 | 3 | 3 | 6 | |
| Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 | |
| Outside Diameter at Bevel (D) | + 4 – 3.2 | + 6.4 – 4.8 | + 6.4 – 4.8 | + 6.4 – 4.8 | |
| Inside Diameter at End | 3.2 | 4.8 | + 6.4 – 4.8 | + 6.4 – 4.8 | |
| Overall Length (H) | 6 | 6 | 10 | 10 | |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | ||||
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
Butt welding Fittings steel Tee End Cap Manufacturing Standards
| ASME B16.9 | ASME B16.28 | ASME B16.49 | MSS SP43 | Mss SP75 |
Note..
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 – NPS 24. Except with regard to the outside diameter at the bevel.
Butt welding Fittings End Cap Material Grades
| Nickel Alloy | ASTM/ASME SB366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, F904L/UNS N08904, Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031,Hastelloy C-276/UNS N10276, Alloy 825/Incoloy 825/UNS N08825,Alloy 20/N08020 |
| Duplex and Super Duplex Steel | ASTM/ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550 |
| Stainless Steel | ASTM/ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM/ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti, ASTM/ASME A403 WP 321, WP 321H ASTM/ASME A403 WP 347, WP 347H |
