Henan Sheng He Pipe Industry Co., Ltd., have an experience spanning for over ten years, producing and supplying best-in-class products, minimize cost by getting manufacturing processes under one roof and delivering consignments on a daily basis only because of a diligent and dedicated team. We are manufacturers, suppliers and exporters of Hastelloy C-22 material.
Common Trade Names: Hastelloy C22®, Inconel® 22, Nicrofer® 5621
Hastelloy C22® provides resistance to general corrosion, pitting, crevice corrosion, intergranular attack, and stress corrosion cracking. Hastelloy C22® contains chromium, molybdenum, tungsten, and iron which makes the alloy resistant to corrosion in stagnant or flowing seawater. The alloy is formed by gas tungsten-arc, gas metal-arc, and shielded metal-arc processes.
Hastelloy C22® Available Formats
Henan Sheng He Pipe Industryoffers Hastelloy C22® in a variety of forms, including:
- Bar

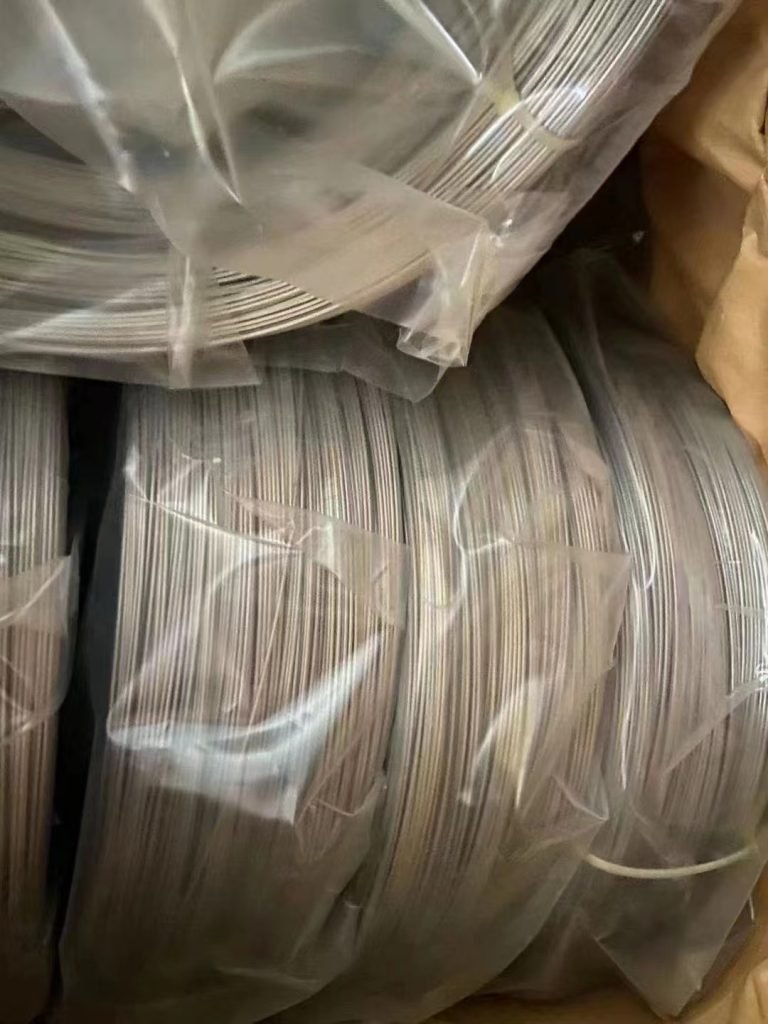

- Wire
- Sheet
- Plate
- Forgings
- Pipe fittings
- Flanges
- Seamless & Welded pipe
- Seamless Tube & Welded tube
- Weld Rod
Hastelloy C22® sheet is available in thicknesses ranging from .038 to .141″. Hastelloy C22® strip in coil from is available in lighter gauges up 12″ wide. Hastelloy C22® plate is available up 2″ thick.
Hastelloy C22® bar is available in wrought bar up to 11″ diameter and larger sizes and shapes may be forged to order.
Hastelloy C22® seamless pipe is available up to 2″ NB. Larger sizes are available in welded construction (100% X-ray) and can also be fabricated to order. Hastelloy C22® tubing is available up 2″ OD in welded & 1/2″ OD isn seamless construction. Hastelloy C22® redrawn tubes and tubing with tight tolerances can be supplied in almost any size no matter how small the size or quantity.
Butt-weld and forged fittings are available or can be manufactured with short lead times.
Available forms of Hastelloy C22® are seamless pipe, welded pipe, seamless tube, welded tube, bar, wire, sheet, plate, forgings, pipe fittings and flanges.
ASTM Specifications
ASTM (American Society for Testing and Materials) for various products made out of Hastelloy C-22 are as follow
| Pipe Seamless | Pipe Welded | Tube Seamless | Tube Welded | Sheet/Plate | Bar | Forging | Fitting | Wire |
| B622 | B619 | B622 | B626 | B575 | B574 | B564 | B366 | – |
Chemical Composition, %
| C | Cr | Co | Fe | Mn | Mo | Ni | P |
| .010 max | 20-22.5 | 2.5 max | 2.0-6.0 | .50 max | 12.5-14.5 | Balance | .02 max |
| Si | S | W | V | ||||
| .08 max | .02 max | 2.5-3.5 | .35 max |
Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
| Plate (.25”-1.75”) | 112 | 53 | 62 | 89 |
| Sheet (.038”-.15”) | 122 | 63 | 54 | 93 |
| Bar (.50”-5.50”) | 115 | 55 | 60 | 89 |
