Henan Sheng He Pipe Industry Co., Ltd., have an experience spanning for over ten years, producing and supplying best-in-class products, minimize cost by getting manufacturing processes under one roof and delivering consignments on a daily basis only because of a diligent and dedicated team. We are manufacturers, suppliers and exporters of Inconel 625 material.
Common Trade Names: Inconel 625, Chornin 625, Altemp 625, Nickelvac 625, Haynes 625 Nicrofer 6020
Inconel 625 is a nonmagnetic, corrosion and oxidation resistant, nickel-base alloy. It has high strength and toughness in the temperature range cryogenic to 2000°F (1093°C) which is derived largely from the solid solution effects of the refractory metals, columbium and molybdenum, in a nickel-chromium matrix. Nickel alloy Inconel 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions.
Inconel 625 Available Formats
Henan Sheng He Pipe Industry offers nickel alloy Inconel 625 in a variety of forms, including:
- Bar
- Wire
- Sheet
- Plate
- Forgings
- Pipe fittings
- Flanges
- Seamless & Welded pipe
- Seamless Tube & Welded tube
- Weld Rod
Inconel 625 sheet is available in thicknesses ranging from .010 to .156″. Nickel alloy Inconel 625 strip-in-coil is available in lighter gauges up 24″ wide. Inconel 625 plate is available up 4″ thick.
Nickel alloy Inconel 625 bar is available in wrought bar up to 8″ diameter and larger sizes and shapes may be forged to order.

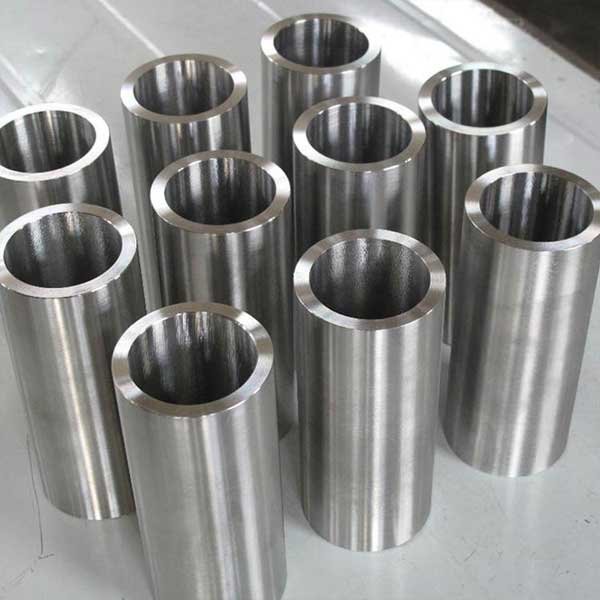

Inconel 625 seamless pipe is available up to 8″ NB. Larger sizes are available in welded construction (100% X-ray) and can also be fabricated to order. Nickel alloy Inconel 625 tubing (welded & seamless) is available up 3″ OD to both aerospace (AMS 5581) and commercial (ASTM B444) specifications. Redrawn tubes and tubing with tight tolerances can be supplied in almost any size no matter how small the size or quantity.
Butt-weld and forged fittings are available or can be manufactured with short lead times.
Alloy 625 is typically used in:
- Chemical processing
- Sour gas wells
- Aerospace and Marine engineering
- Pollution-control equipment
- Nuclear reactors
ASTM Specifications
ASTM (American Society for Testing and Materials) for various products made out of Inconel 625 are as follow
| Pipe Seamless | Pipe Welded | Tube Seamless | Tube Welded | Sheet/Plate | Bar | Forging | Fitting | Wire |
| B444 | B705 | B444 | B704 | B443 | B446 | – | – | – |
Chemical Composition, %
| Cr | Ni | Mo | Co + Nb | Ta | Al | Ti | C |
| 20.00-30.00 | Remainder | 8.0-10.0 | 1.0 max | 3.15-4.15 | .40 max | .40 max | .10 max |
| Fe | Mn | Si | P | S |
| 5.0 max | .50 max | .50 max | .015 max | .015 max |
Mechanical Properties
Representative Tensile Properties, bar, 1800° F anneal
| Temp° F | Tensile (psi) | .2% Yield (psi) | Elongation in 2 “ (%) |
| 70 | 144,000 | 84,000 | 44 |
| 400 | 134,000 | 66,000 | 45 |
| 600 | 132,000 | 63,000 | 42.5 |
| 800 | 131,500 | 61,000 | 45 |
| 1000 | 130,000 | 60,500 | 48 |
| 1200 | 119,000 | 60,000 | 34 |
| 1400 | 78,000 | 58,500 | 59 |
| 1600 | 40,000 | 39,000 | 117 |
